PROFESSIONAL MICRO MOTOR MANUFACTURER
GEARED MOTOR CUSTOMIZATION
Geared DC motor is an important component in various applications.
We would like to use our advanced motor technology and productivity to design and manufacture gear motors for your unique device.
Output Speed and Torque
In order to select the most suitable geared motor for your application, please share your desired speed and torque. We have wide range of gear ratios from 5:1 up to 1000:1 to achieve:
a) Optimal torque from 5.0g.cm to 50.0kg.cm
b) Output speed from 5 rpm to 5000 rpm

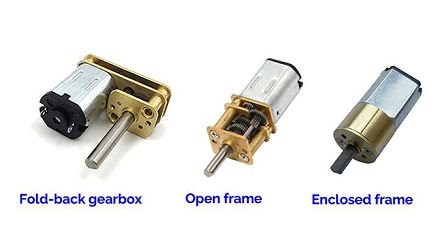

Gearbox Selection
a) Fold-back gearbox, or a non-concentric offset gearbox shaft are available if space is limited while customer design.
b) Most of gear motors use an open construction with square or rectangular gear boxes. We also have enclosed gear boxes which designed to be circular, making them more practical to cover the gears, and prevent debris or dust entering.

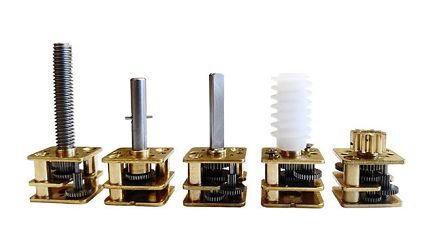

Shaft Solution
Different shaft length, round type, location holes, D-cut, and screw shafts etc. Or adding a gear to output shaft. It also can be customized according to customer drawings.
Adding Connectors
Micro geared motor input method with pin type, lead wires, connectors, and so on.
Use one of our standard connectors like Molex 51021-0200, JST SHR-02V-S-B, JST-PHR-2, Elco 8005, ACES 50276-002, etc.
Matching Encoder
The encoders are constructed according to optical or magnetic principles. Different encoders can combine with INEED DC motors. The encoders are the ideal for commutation, position control, speed or count. That means each shaft position within a revolution is assigned a unique angular value through the encoder.
Three steps to start your customization today!
-
1. Tell us what you need
As every application has its own characteristics and requirements.
We provide customized services for gearmotors including output shaft design, gear reduction ratio, output speed, stall torque, adding connectors and encoders etc.
Just tell us your design concept and basic parameters. -
2. Get solution & quote
We will work on the best solution and provide primarily specification& quote for your review.
-
3. Sample production and mass production
We will start mass production after customer confirmation and validation of samples.
Get A Free Quote
Please specify parameters as rated voltage, no load speed, stall torque if available in the content for us to help you choose the right micro gear motor to optimize your application.

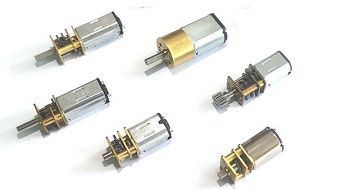

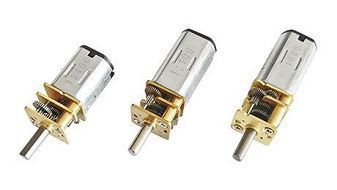

The following motors are examples we have developed for our customers, most of them are in mass production successfully. If you like one of them, that would be great! If not, please fill the information in above form, and start your customization journey now!
